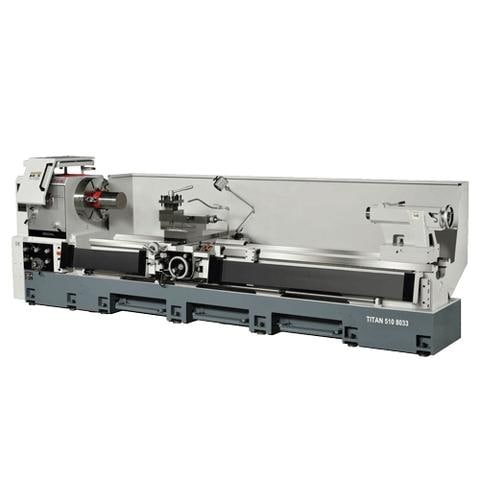

Heavy Duty Flat Bed Lathe

TITAN 810 series

The heavy duty precision CNC lathe- TITAN 810 series enables Union MT machines to present a solution for high precision production as well as small batch or protype high precision machining. Contact us via email for order!
  • Heavy duty cutting
  • Efficient chip removal
  • Smart and complete machine inspection
  • Big bore and large size parts applications


Rigid Headstock

Symmetrical headstock & enhanced ribs increase rigidity and reduce thermal displacement.

Rigid Bed and Base

Integrated one piece base and bed structure and reinforced design ribs assure excellent rigidity and superb dampening capability for heavy duty and fine tuning.

Robust Tailstock

Robust tailstock structure with MT#6 or MT#7 quill- provides heavy duty cutting and drilling capability.

Specification


TITAN 810 Series
ITEM
1400
1600
1800
Capacity
Center height
1385 mm 54.53"
1485 mm 58.46"
1585 mm 62.40"
Distance between centers
2000/ 3000/ 4000/ 5000/ 6000/ 7000/ 8000/ 9000/10000/11000/12000 mm
78.74"/ 118.11"/ 157.48"/ 196.85"/ 236.22"/ 275.59"/ 314.96"/ 354.33"/ 393.70"/ 433.07"/ 472.44"
Swing over bed
1400 mm 55.12"
1600 mm 62.99"
1800 mm 70.87"
Swing over cross slide
990 mm 38.98"
1190 mm 46.85"
1390 mm 54.72"
Swing over bed
1680 mm 66.14"
1880 mm 74.02"
2080 mm 81.89"
Width of Bed
810 mm 31.89"
Width of gap
784 mm 30.87"
Width of carriage
1000 mm 39.37"
Width of cross slide
350 mm 13.78"
Spindle
Bed way
2V Ways and 3 Flat Ways
Spindle bore
160 mm/ (205/230/260/305/380/460 mm Option)；
6.30" (8.07"/ 9.06"/ 10.24"/ 12.01"/ 14.96"/ 18.11" Option)
Spindle nose
A2-15/ (A2-20 Opt.)
Spindle speeds
4-420 rpm/ (7-266 rpm Option)
Spindle speed range
16 steps
Spindle motor
15 Kw 20 hp/ (22.5 kw 30 hp, 30 kW 40 hp, 37.5 kW 50 hp Option)
Feed Mechanism
X axis cross slide travel
600 mm 23.62"
Compound slide travel
370 mm 14.57"
Z axis longitudinal travel
2000/ 3000/ 4000/ 5000/ 6000/ 7000/ 8000/ 9000/ 10000/ 11000/ 12000 mm
78.74"/ 118.11"/ 157.48"/ 196.58"/ 236.22"/ 275.59"/ 314.96"/ 354.33"/ 393.70"/ 433.07"/ 472.44"
X axis traverse motor
1 hP (2hP Option)
X/ Z axis traverse speed
X: 1.1 m/min 43.31 ipm Z: 2.1 m/min 82.68 ipm
Square tool shank size
40 mm 1-1/2"
X axis cross feed
0.03 - 3.52 mm/rev
Z axis longitudinal feed
0.06 - 7.04 mm/rev
Inch thread
0.25 - 30 TPI (70sets)/ D.P. 1-120 TPI (70 sets)
Metric thread
1 - 120 mm (62 sets)/ M.P. 0.25 - 30 mm (53 sets)
Tailstock
Quill taper
MT#6 (MT#7 Option)
Quill diameter
200 mm 7.87"
Quill travel
305 mm 12.01"
Machine Dimension
Weight
13000/ 14100/ 15200/ 16300/ 17400/ 18500/ 19600 kg
Length
4740/ 5740/ 6740/ 7740/ 8740/ 9740/ 10740/ 11740/ 12740/ 13740/ 14740 mm
186.61"/ 225.98"/ 265.35"/ 304.72"/ 344.09"/ 383.46"/ 422.83"/ 462.20"/ 501.57"/ 540.94"/ 580.32"
Width
2170 mm 85.43"
Height
1590 m 62.60"
-Two faced contact tools are needed to get better cutting capability.
-Actual values may differ from the specification in the catalog caused by optional and peripheral accessories.
*Fanuc system spindle & servo motors adopt alpha series motors.
*Please be aware of the continuous performance improving policy, UnionMT reserves the rights to change product specifications, data, options, appearances and etc. without notice.
